Gratings & Raceways
Gratings & Raceways
Gratings & Raceways play a crucial role in structural safety and cable management across various industries.
- Gratings are designed for flooring, walkways, platforms, and drainage systems, offering durability, slip resistance, and load-bearing capacity.

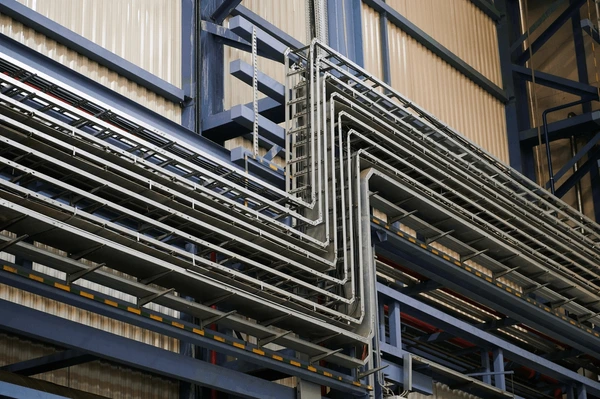

- Raceways are protective cable management systems that house and organize electrical wiring, ensuring a structured and safe electrical layout.
Both components are widely used in industrial plants, commercial buildings, infrastructure projects, and hazardous environments.
Gratings: Features & Benefits
1. Strong & Durable Construction
- Manufactured from mild steel (MS), stainless steel (SS), aluminum, or fiberglass-reinforced plastic (FRP).
- Available in galvanized, powder-coated, and epoxy-coated finishes for corrosion resistance.
2. Anti-Slip & Safety Compliance
- Designed with serrated or plain surfaces to prevent slipping.
- Complies with OSHA, ANSI, and other industrial safety standards.
- Fire-resistant and can withstand heavy loads.
3. Versatile & Customizable Designs
- Available in welded, pressure-locked, and expanded metal configurations.
- Comes in different sizes, bar spacings, and thicknesses for diverse applications.
4. Easy Installation & Maintenance
- Pre-fabricated panels for quick installation.
- Resistant to harsh environmental conditions, requiring minimal upkeep.
5. Applications of Gratings
✔ Industrial Platforms & Walkways – Ensures safe movement in factories and plants.
✔ Drainage Covers – Used in wastewater treatment, refineries, and infrastructure projects.
✔ Cooling Towers & Marine Docks – Withstands moisture, chemicals, and heavy loads.
✔ Power Plants & Oil Rigs – Provides fire resistance and safety in hazardous areas.
✔ Construction Sites & Public Spaces – Used for pedestrian walkways and ventilation grates.
Installation & Safety Considerations
- Material Selection – Choose stainless steel or FRP gratings for high-corrosion areas and metal or PVC raceways for electrical safety.
- Load Capacity & Compliance – Ensure gratings meet OSHA standards for weight-bearing applications.
- Secure Cable Routing – Use IP-rated raceways for outdoor and hazardous environments.
- Ventilation & Accessibility – Allow proper airflow in enclosed raceways to prevent overheating.
- Regular Inspection & Maintenance – Check for corrosion, loose fittings, or cable damage over
Raceways: Features & Benefits
1. Efficient Cable Management System
- Organizes electrical wiring and communication cables in commercial, industrial, and residential settings.
- Reduces cable clutter and improves workspace safety.
2. Durable & Reliable Protection
- Made from mild steel, stainless steel, aluminum, PVC, or polycarbonate.
- Available in powder-coated, galvanized, or flame-retardant plastic finishes.
- Protects cables from moisture, dust, and mechanical damage.
3. Multiple Configurations & Customization
- Comes in surface-mounted, wall-mounted, underfloor, and ceiling-mounted designs.
- Available with pre-punched holes, removable covers, and modular fittings.
4. Easy Installation & Maintenance
- Snap-on covers and access panels for quick installation and repairs.
- Flexible conduit fittings for easy cable entry and exit points.
5. Applications of Raceways
✔ Industrial Facilities – Organizes and protects power cables in manufacturing units.
✔ Commercial Buildings – Provides structured cabling for offices and IT networks.
✔ Residential Wiring – Conceals and protects electrical installations in homes.
✔ Hospitals & Data Centers – Ensures safe and organized cable routing for sensitive equipment.
✔ Railways & Infrastructure Projects – Used for electrical and communication wiring in tunnels and bridges.
Conclusion
Gratings & Raceways are vital components for safe infrastructure and efficient cable management. Whether in industrial plants, commercial spaces, or outdoor installations, they provide durability, protection, and organization for various applications.
By selecting the right material, design, and installation approach, industries can enhance safety, reduce maintenance costs, and improve efficiency in their electrical and structural systems.
