Perforated Type
Perforated Type Cable Trays

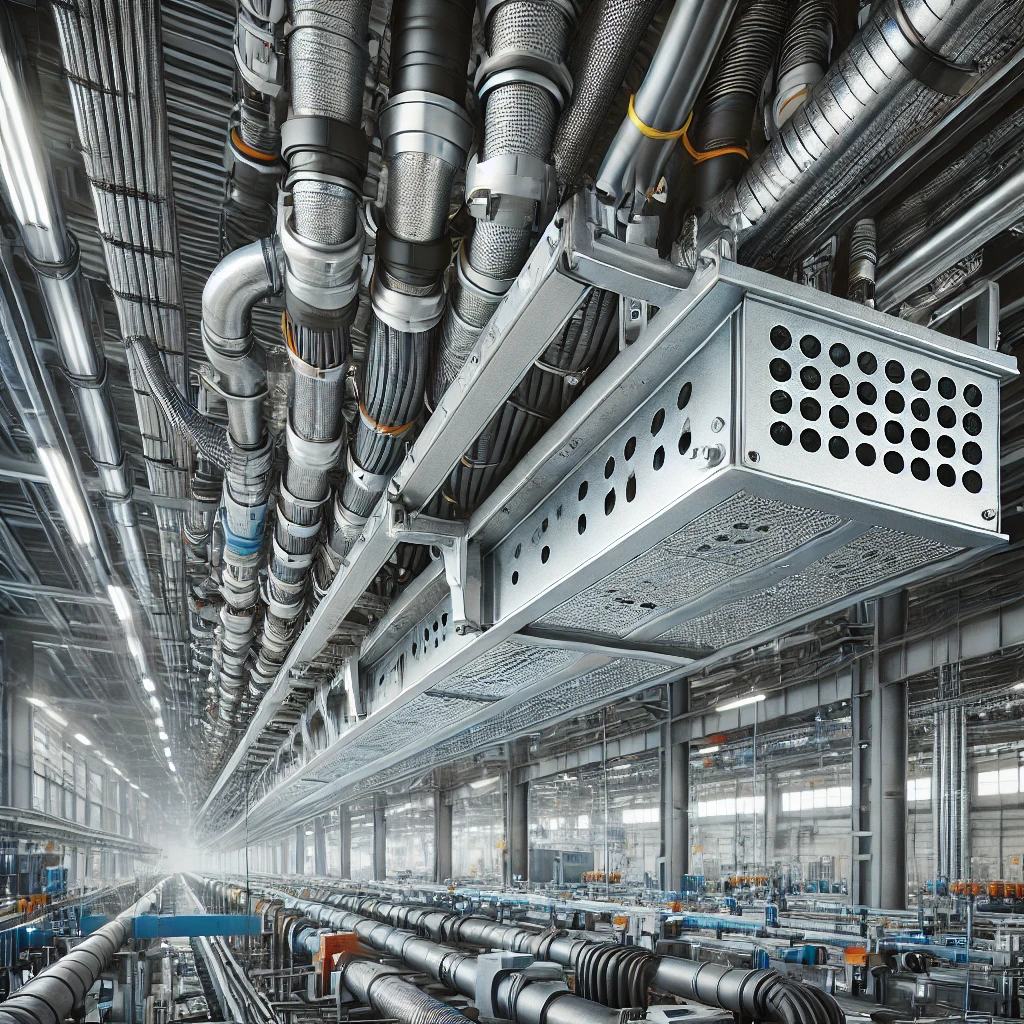

Perforated type cable trays are widely used in electrical cable management systems to support and organize power, control, and communication cables. These trays have a solid bottom with evenly spaced perforations, allowing for better ventilation while providing strong mechanical support. They are commonly used in industrial, commercial, and infrastructure applications where cable protection and efficient heat dissipation are required.
Features of Perforated Type Cable Trays
Perforated Bottom Design
- The holes improve air circulation, reducing heat buildup.
- Prevents moisture accumulation, protecting cables from corrosion.
Strong & Durable Construction
- Manufactured using mild steel (MS), stainless steel (SS), aluminum, or fiber-reinforced plastic (FRP).
- Available in pre-galvanized, hot-dip galvanized, powder-coated, or epoxy-coated finishes for enhanced durability.
Available in Different Sizes
- Widths range from 50mm to 1000mm, and thickness varies from 1.2mm to 3mm based on cable load requirements.
- Custom sizes are available for specific project needs.
Corrosion & Fire Resistance
- Protective coatings enhance longevity in harsh industrial and outdoor environments.
- Fire-retardant materials are available for high-risk areas.
Flexible Installation Options
- Can be installed on walls, ceilings, or floors with appropriate support structures.
- Accessories such as bends, tees, cross-sections, and reducers allow for complex routing.
Types of Perforated Cable Trays
Mild Steel Perforated Cable Trays
- Cost-effective and strong, ideal for general electrical installations.
- Requires coating (galvanization or powder coating) for corrosion resistance.
Stainless Steel Perforated Cable Trays
- High resistance to chemicals and extreme temperatures.
- Used in food processing, pharmaceutical, and marine industries.
Aluminum Perforated Cable Trays
- Lightweight with excellent corrosion resistance.
- Ideal for power plants, airports, and IT infrastructure.
FRP (Fiberglass Reinforced Plastic) Perforated Cable Trays
- Non-corrosive, non-conductive, and fire-resistant.
- Best suited for chemical plants, wastewater treatment facilities, and offshore platforms.
Applications of Perforated Type Cable Trays
- Industrial Plants: Organizing power and control cables in manufacturing and processing industries.
- Commercial Buildings: Managing electrical and communication wiring in malls, offices, and hospitals.
- Oil & Gas Industry: Used in refineries and offshore platforms due to corrosion resistance.
- Data Centers & IT Sectors: Ensuring structured cabling for reliable network performance.
- Transportation Hubs: Installed in airports, railways, and metro stations for power and signal distribution.
Advantages of Perforated Type Cable Trays
✔ Enhanced Heat Dissipation – Prevents cable overheating by allowing air circulation.
✔ Improved Cable Protection – Shields cables from mechanical damage and environmental factors.
✔ Cost-Effective – More economical than conduit systems due to reduced material and installation costs.
✔ Easy Maintenance & Modification – Open structure allows for quick inspections and future cable expansions.
✔ High Load-Bearing Capacity – Supports multiple cables with proper weight distribution.
✔ Customizable & Scalable – Available in different sizes, finishes, and designs to suit project needs.
Conclusion
Perforated type cable trays offer a perfect balance of strength, ventilation, and protection, making them an ideal solution for modern electrical and cable management systems. Their versatility and durability ensure safe and efficient cable routing in various industries, from industrial plants to IT infrastructure.
MS (Mild Steel)
Mild Steel (MS) is a widely used material in construction, engineering, and industrial applications due to its strength, durability, and cost-effectiveness. It contains a low percentage of carbon, making it easy to weld and fabricate. MS products, including sheets, plates, pipes, and structural components, are commonly used in manufacturing, infrastructure, and general fabrication.
Features:
✔ High tensile strength and durability
✔ Easy to weld, cut, and shape
✔ Cost-effective compared to other metals
✔ Available in various thicknesses and sizes
✔ Can be coated or galvanized for enhanced corrosion resistance
Applications:
Structural frameworks in buildings and bridges
Automotive and machinery components
Piping and tubing for industrial use
General fabrication and manufacturing
Hot Dip Galvanized (HDG) Steel
Hot Dip Galvanized (HDG) steel is coated with a layer of zinc through an immersion process, providing superior corrosion resistance. This makes it ideal for outdoor and industrial applications where exposure to moisture and harsh weather is a concern.
Features:
✔ Excellent corrosion and rust resistance
✔ Long-lasting and low maintenance
✔ Strong adhesion of zinc coating to prevent peeling or chipping
✔ Withstands harsh environments and extreme temperatures
Applications:
Electrical cable trays and support structures
Outdoor steel structures, fences, and poles
Marine and coastal applications
Industrial piping and ductwork
GI Sheet (Galvanized Iron Sheet)
Galvanized Iron (GI) Sheets are coated with zinc to prevent rust and corrosion, making them ideal for roofing, fencing, and structural applications. Available in plain, corrugated, or perforated forms, GI sheets are known for their durability and versatility.
Features:
✔ High corrosion resistance due to zinc coating
✔ Lightweight yet strong for various applications
✔ Available in different thicknesses and finishes
✔ Fire-resistant and weatherproof
Applications:
Roofing and cladding in residential and industrial buildings
Ductwork for HVAC systems
Fabrication of storage tanks and containers
Electrical panel enclosures and protective covers
Powder Coating
Powder coating is a dry finishing process that applies a protective and decorative layer to metal surfaces. This process enhances durability, resistance to corrosion, and aesthetic appeal. Powder-coated surfaces are widely used in industrial and architectural applications.
Features:
✔ Scratch-resistant and durable finish
✔ Environmentally friendly – no harmful solvents
✔ UV and weather-resistant properties
✔ Available in a variety of colors and textures
Applications:
Architectural metalwork (gates, railings, and fences)
Automotive and industrial machinery parts
Home appliances and furniture
Electrical enclosures and metal panels
Aluminium
Aluminium is a lightweight, corrosion-resistant metal widely used in construction, transportation, and industrial applications. It is available in sheets, extrusions, bars, and custom profiles for various industries.
Features:
✔ Lightweight with high strength-to-weight ratio
✔ Naturally corrosion-resistant without coating
✔ Excellent thermal and electrical conductivity
✔ Recyclable and eco-friendly
Applications:
Structural components in construction and aerospace
Electrical conductors and panels
Automotive and marine applications
Decorative and architectural finishes
Stainless Steel (SS)
Stainless Steel (SS) is a high-quality metal known for its resistance to rust, corrosion, and extreme temperatures. It is widely used in industrial, commercial, and household applications.
Features:
✔ Excellent resistance to rust and corrosion
✔ High strength and durability
✔ Hygienic and easy to clean (ideal for food and medical industries)
✔ Available in various grades (304, 316, etc.) for different environments
Applications:
Food processing and pharmaceutical industries
Architectural and structural applications
Automotive and transportation components
Marine and chemical processing equipment
FRP (Fiberglass Reinforced Plastic)
Fiberglass Reinforced Plastic (FRP) is a strong, lightweight, and non-conductive material used in corrosive environments. It is commonly used for cable trays, grating, and structural components where metal alternatives are unsuitable.
Features:
✔ Non-corrosive and resistant to harsh chemicals
✔ Non-conductive – ideal for electrical applications
✔ Lightweight yet highly durable
✔ Fire-retardant and weather-resistant
Applications:
Chemical plants and wastewater treatment facilities
Electrical cable trays and enclosures
Offshore and marine structures
Industrial flooring and walkways
